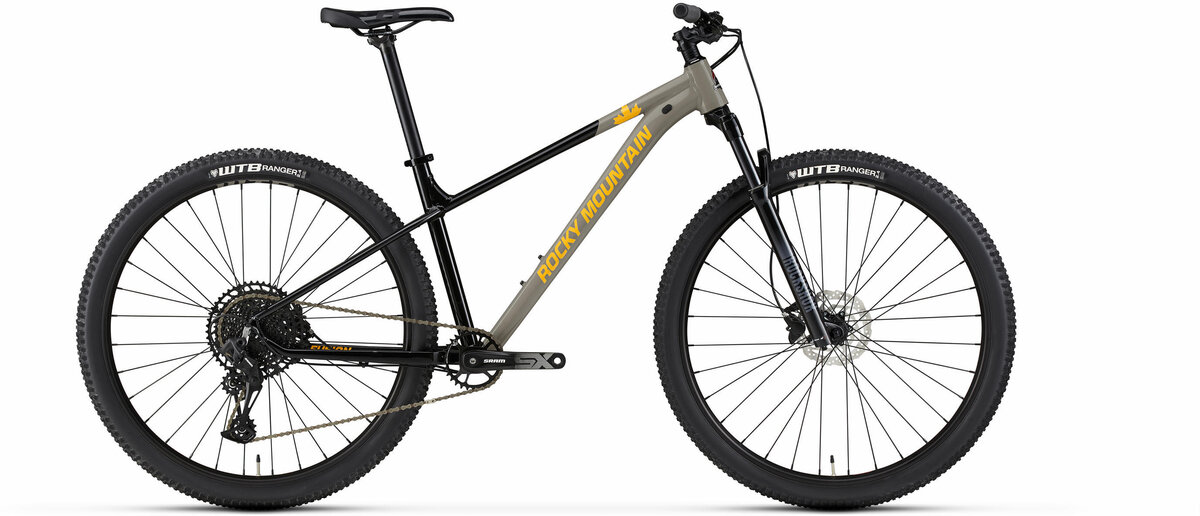

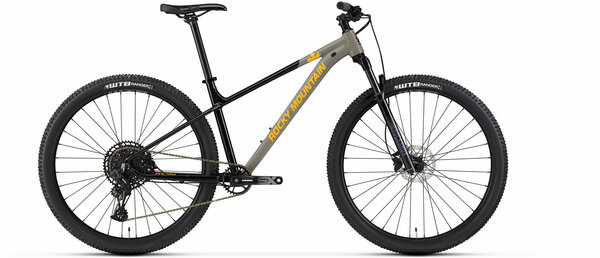

Rocky Mountain Fusion 40

Rocky Mountain Fusion 40
Please select options
Sorry, this item is currently not available. Please contact us to check availability.


The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack.

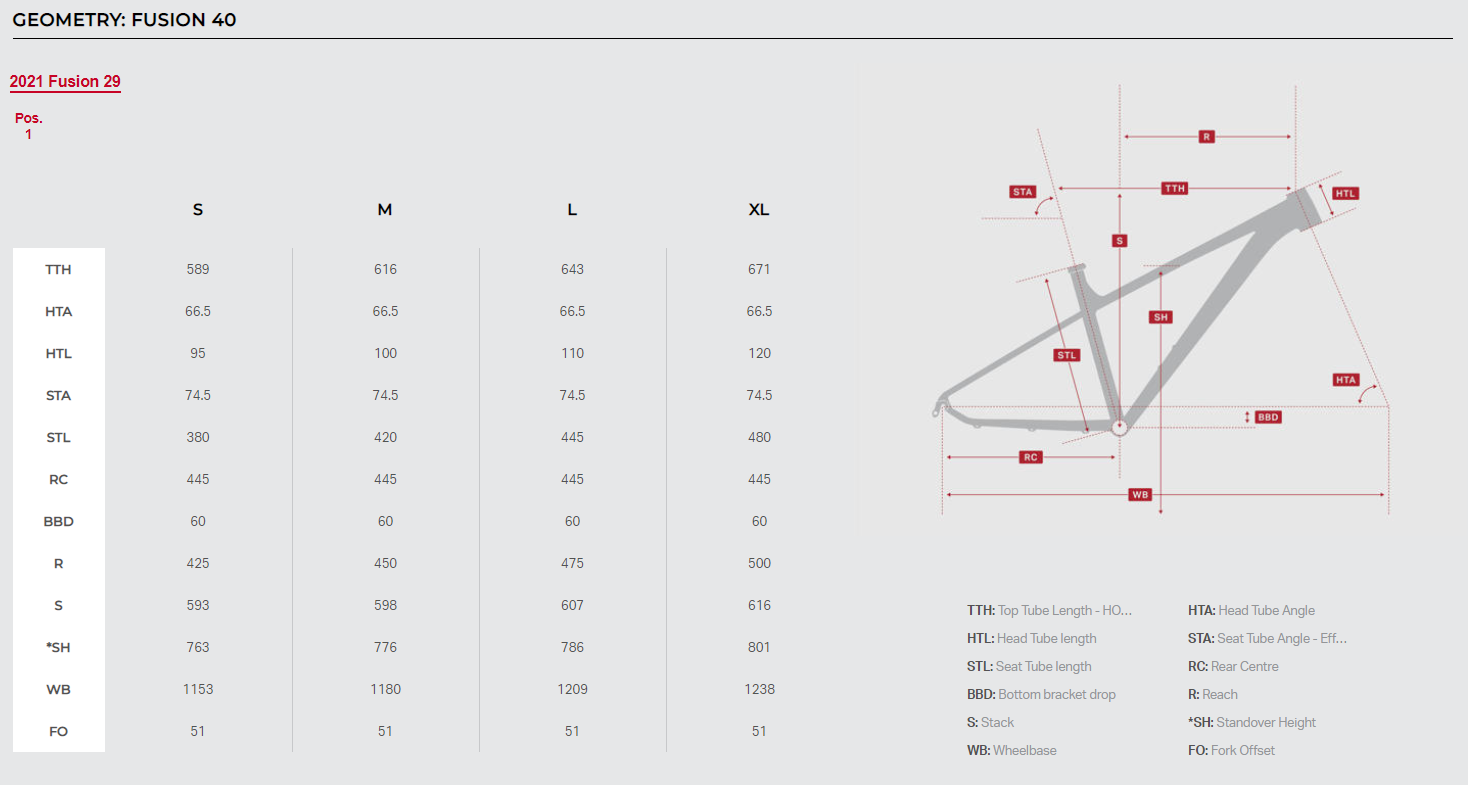

The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true "downcountry" rider, including 29" wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.

- All new modern Downcountry geometry
- Stable and fun
- Lightweight alloy frame
- Simple & reliable 1x drivetrain
- All new geometry for stability and confidence


Frame Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube 0 Rear Triangle
Fork RockShox Judy Silver Fast Black TK Air 100mm
Headset FSA Orbit NO.57B | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower
Rims/Wheels WTB ST i30 TCS 2.0 Tubeless | Tubeless Compatible
Hubs Front: Shimano TX505
Rear: Shimano TX505 QR
Spokes 2.0 Stainless
Tires WTB Ranger Comp 29 x 2.4
Crankset Sram SX Eagle Powerspline
Chainrings 30T
Bottom Bracket Sram Powerspline
Chain Sram SX Eagle
Rear Derailleur Sram SX Eagle
Cassette/Rear Cogs Sram PG-1210 11-50T
Shifters Sram SX Eagle
Handlebars Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8mm Clamp
Tape/Grips Rocky Mountain Lock On Light
Stem Rocky Mountain XC | 7° Rise | All Sizes = 50mm
Brakes Shimano MT201 2 Piston | Organic Pads | Shimano RT10 160mm F Rotor | Shimano RT10 160mm R Rotor
Pedals Alloy Platform
Saddle WTB Volt | Steel Rails | 142mm Width
Seat Post Rocky Mountain 30.9mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Beige / Small 770416299700 B0154SM1
Black/Beige / Medium 770416299748 B0154MD1
Black/Beige / Large 770416299786 B0154LG1
Black/Beige / X-Large 770416299823 B0154XL1
